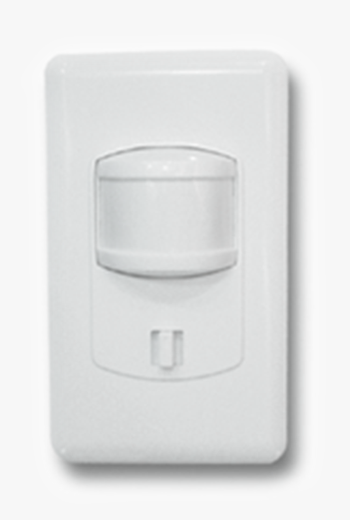

Passive Infrared SenSwitch LC-772



LC-772 is an innovative, standalone energy saving auto-switch designed for commercial/residential automatic lighting control.

It can be used to switch the light or other loads on and off by sensing the motion of people. Adjustable LUX and TIME allow user to set the switching control timing according to the ambient light level and light-on delay time.

IR-TEC's patented 2-wire power supply technology enables this auto-switch to retrofit the existing single control light switch.

Features

DuCAS 2-wire power supply technology

Automatic temperature compensation

No neutral wire is required

Manual override control switch

Single gang box recess mountable

Available with variety types of load

Adjustable light-on delay time

Adjustable switching control threshold

Plug-in type easy wiring terminals

Extra wide detection angle



Specifications

Power supply

100~250 VAC, 50/60 Hz

Maximum load

3 A @110 V, 1.5 A @230 V

Infrared sensor

Dual element infrared sensor

Delay time

Approx. 8 sec. ~ 3 min. adjustable

Lux adjustment

Night-only to 24 hours daytime operation

Detectable speed

0.1 ~ 3.0 m/sec.

Mounting height

1.2 ~ 1.5 m (8 ~ 14 ft)

Detection range

140 wide, 10 m long

Mounting pitch

83.5 mm

Temperature

-20C~50C (-4F~122F)

Dimensions

120 x 70 x 60 mm

DETECTION PATTERN
