Ceiling Mount PIR Motion Sensor With Light, HC-25A

HC-25A (Ceiling Light with PIR Sensor) can detect the infrared rays released by human motion within the detection area, and then start the in built load -light automatically. The unit is for indoor use only. HC-25A is the ceiling lamp, it is IP20 waterproof class. The customers usually install this sensor in the living room, restroom, corridor, and verandah.

Applications

LIVING ROOM

REST ROOM

CORRIDOR

VERANDAN

LIFTS / LIFT LOBBY

ATM’S

HOSPITALS / NURSING HOMES


Specifications

1. Rated Voltage: 230V AC 50Hz

2. Load Wattage: Max. 2x25W incandescent bulb or Max. 2x9W fluorescent lamps

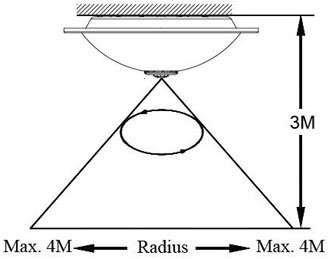

3. Detection Area: Max. 4 meters in radius

4. Detection Angle: Max. 360º around

5. Time-delay : From 10±5 seconds to 4±1 minutes adjustable

6. LUX Control Level : From daytime to darkness adjustable

7. Protection Class : IP20
