PIR Motion Sensors & Switches

91-11-27245389, 45680580

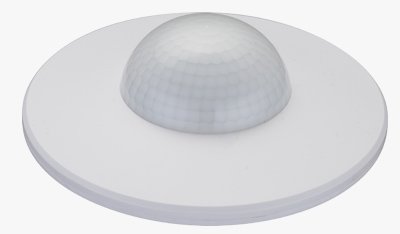

PIR motion sensor HC-24

HC-24 PIR Motion SensorThe product adopts good sensitivity detector and integrated circuit. It gathers automatism, convenience, safety, saving-energy and practical functions. It utilizes the infrared energy from human as control-signal source and it can start the load at once when one enters detection field. It can identify day and night automatically. It is easy to install and used widely.

Features

• Can identify day and night: The consumer can adjust working state in different ambient light. It can work in the daytime and at night when it is adjusted on the “sun” position (max). It can work in the ambient light less than 3LUX when it is adjusted on the “3” position (min). As for the adjustment pattern, please refer to the testing pattern.

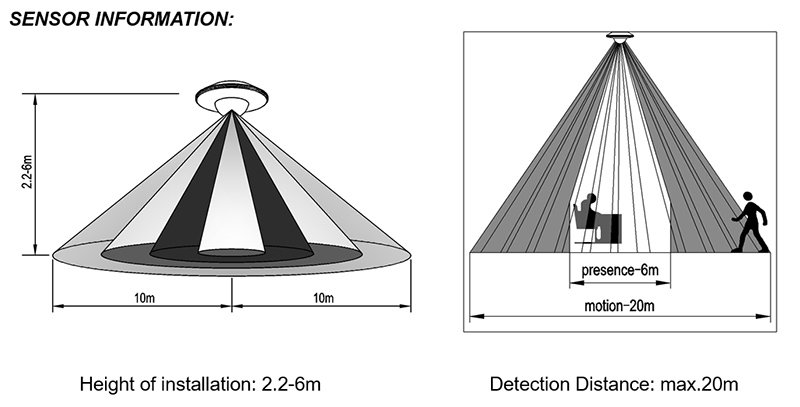

• SENS adjustable: It can be adjusted according to using location. The detection distance of low sensitivity could be only 3m and high sensitivity could be 20m which fits for large room.

• Time-Delay is added continually: When it receives the second induction signals within the first induction, it will restart to time from the moment.





HC-24 PIR Motion Sensors

Hamilton Electronics Pvt. Ltd. , is an ISO 9001 : 2000 Certified Company , engaged in the manufacturing of Switches & Sensors for Security Alarm Systems , Magnetic Door Contacts, Magnetic Security Switches and host of other Sensors.

Click Here To Visit

PIR Sensors passive infrared detector that will give you the edges over the competition and secure your business contract in today's price oriented market. The company has a consistent record of growth and expansion with fast increasing sales turnover since its inception.

Click Here To Visit

Float Sensor is an electrical ON/OFF Switch, which operates automatically when liquid level goes up or down with respect to specified level. The Signal thus available from the Float Sensor can be utilized for control of a Motor Pump or an allied electrical element like Solenoid, Lamps.

Click Here To Visit
