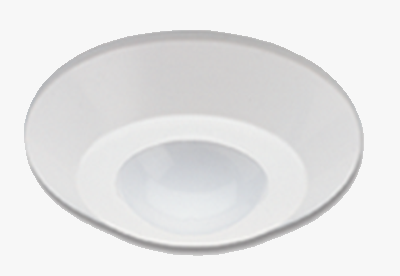

360 Ceiling Mount Auto-Switch LC-362 / 362S



LC-362 series is a state-of-the-art 360 ceiling mount (recess) energy saving auto-switch for automatic lighting control of commercial or residential applications.

By utilizing IR-TEC's patented power supply technology, LC-362 series is able to activate various kinds of load without the need of neutral wire.

Features



LC-362

LC-362S

Surface mount technology

1 minute fixed delay time

Built-in CdS photocell sensor

Temperature compensation

Full time control (no CdS)

Programmable TIME & LUX

Omni-directional detection





Superior RFI/EMI immunity







Specifications

Product No.

LC-362

LC-362S

Power supply

100 ~ 250 VAC

-

Maximum load

3.0 A @110 V, 1.5 A @230 V

-

Delay time

1 min. fixed

8 sec.~6 min.

Infrared sensor

Omni-directional, dual element

-

Detectable speed

0.1 ~ 3.0 m/sec.

-

Mounting height

2.4 ~ 4.2 m (8 ~ 14 ft)

-

Mounting pitch

70~86 mm / 83.5 mm

-

Op. temperature

-20C~50C (-4F~122F)

-

Dimensions

110 (dia.) x 60 mm (H)

-

DETECTION PATTERN
