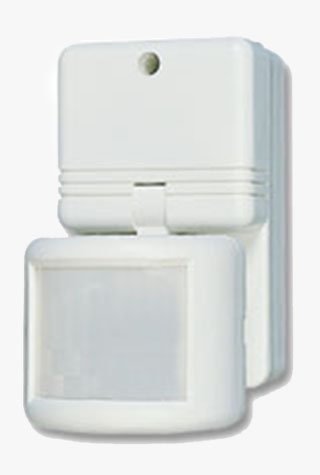

Passive Infrared SenSwitch LC-720



LC-720 is a passive infrared SenSwitch designed for indoor/ outdoor lighting control by sensing the presence of human body. Its unique mechanism design allows it to be mounted on the ceiling or wall.

The sensor head can be adjusted vertically or horizontally to provide easy adjustment of detection coverage. LUX and TIME controls can be adjusted according to individual requirement.

Features

Wall/ceiling mount available

Built-in CdS photocell sensor

Adjustable LUX and TIME

Works at 100 ~ 250 VAC

Weatherproof housing design

Sensor head swivel design

Superior RFI/EMI immunity

Surface mount technology



Specifications

Power supply

100 ~ 250 VAC

Maximum load

10 A resistive load

Delay time

8 seconds ~ 8 minutes

Infrared sensor

Dual element

Photocell sensor

CdS

Detection speed

0.1~3.0 m/sec.

>Mounting height

2.4~4.0 m (8 ~ 12 ft)

Op. temperature

-20C~50C (-4F~122F)

Dimensions

125 x 68 x 96 mm

DETECTION PATTERN
