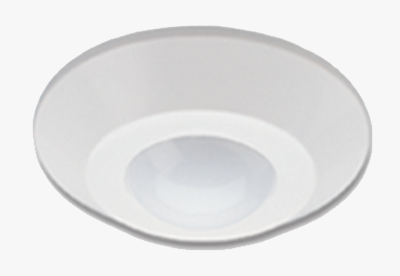

360°Ceiling Mount Auto-Switch LC-363

LC-363 is a state-of-the-art 360° ceiling mountable energy saving auto-switch for automatic lighting control of commerical or residential.

It can be used to switch the light or other loads on and off by sensing the motion of people. Adjustable LUX and TIME allow user to set the switching control timing according to the ambient light level and light-on delay time. Audible delay-end warning can be enabled to indicate the approach of delay time end.

Features

Omni-directional, dual element sensor

Automatic temperature compensation

Switching control up to 10 Amp load

Superior RFI/EMI immunity protection

Audible Delay-End Warning enabled

Built-in CdS photocell light sensor

Adjustable light-on delay time

Adjustable LUX level threshold

Ceiling recess mountable design

Voltage free relay contact output



Specifications

Power supply

110 / 230 VAC, 50/60 Hz

Relay contact

Max. 10 A, 250 VAC, no voltage

Infrared sensor

Omni-directional, dual element

Delay time

Approx. 8 sec. ~ 5 min. adjustable

Lux adjustment

Night-only to 24 hours daytime operation

Detection speed

0.1~3.0 m/sec.

Mounting height

2.4 ~ 4.2 m (8 ~ 14 ft)

Mounting hole

60 mm diameter

Mounting pitch

70~86 mm / 83.5 mm

Op. temperature

-20C~50C (-4F~122F)

Dimensions

110 (dia.) x 60 mm (H)

DETECTION PATTERN
