PIR Motion Sensors & Switches

PIR MOTION Sensor For Light Control With Manual Override, HC-7D

HC-7D sensor switch can detect the infrared Rays released by human body motion within the Detection area, then start the load-light automatically.

This PIR Sensor has an extra feature of manual override. HC-7D has a longer detection range and wider angle, it is better for security use.




Applications

GARAGE

CORRIDOR

STAIRWAYS

NEAR GATE

BASEMENTS

PARKING AREA

LOCKERS / SAFE ROOMS

ATMS – COLLEGES/ SCHOOLS/ INSTITUTES

MULTI-APARTMENT COMPLEXES

HOSPITAL/ NURSING HOMES

MALLS AND MANY MORE PLACES….!


Specifications

1. Rated Voltage: 230V AC 50Hz

2. Load Wattage: Max. 1000W incandescent bulb or Max. 300W fluorescent lamp

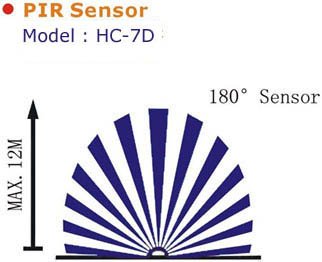

3. Detection Area: Max. 12 meters

4. Detection Angle: Max. 180º

5. Time-delay : From 10±5 seconds to 6±1 minutes adjustable

6. LUX Control Level : From daytime to darkness adjustable

7. Protection Class : IP44
